Branson 5800 Cleaner


Product Description

CPX5800H = Digital Controls and Heat

M5800H = Analog Controls and Heat

CPX5800 = Digital Controls , no Heat

M5800 = Analog Controls, no Heat

Branson 5800 Ultrasonic Cleaner, 2.5 gallon, 40 kHz

  • Tank is 11.5"l x 9.5"w x 6"d
  • Ships from stock
  • Free US48 Ground shipping
  • Returns accepted of unused tanks within 15 days
  • Two year Factory Warranty, parts & labor
  • We are an authorized distributor of Branson Ultrasonics

Branson 5800 ultrasonic cleaner - M5800, M5800H, CPX5800, CPX5800H. 2.5 gallon tank, 40 khz, Available with heat, degas and digital controls. FREE UPS ground shipping.

With it's two and a half gallon size and innovative choice of feature sets, the Branson 5800 is a great choice for small machine shops, manufacturing facilities, or anywhere where top quality ultrasonic cleaning is needed. The 5800 comes equipped with a full stainless steel tank, chemical resistant outer cover, and a choice of four models.

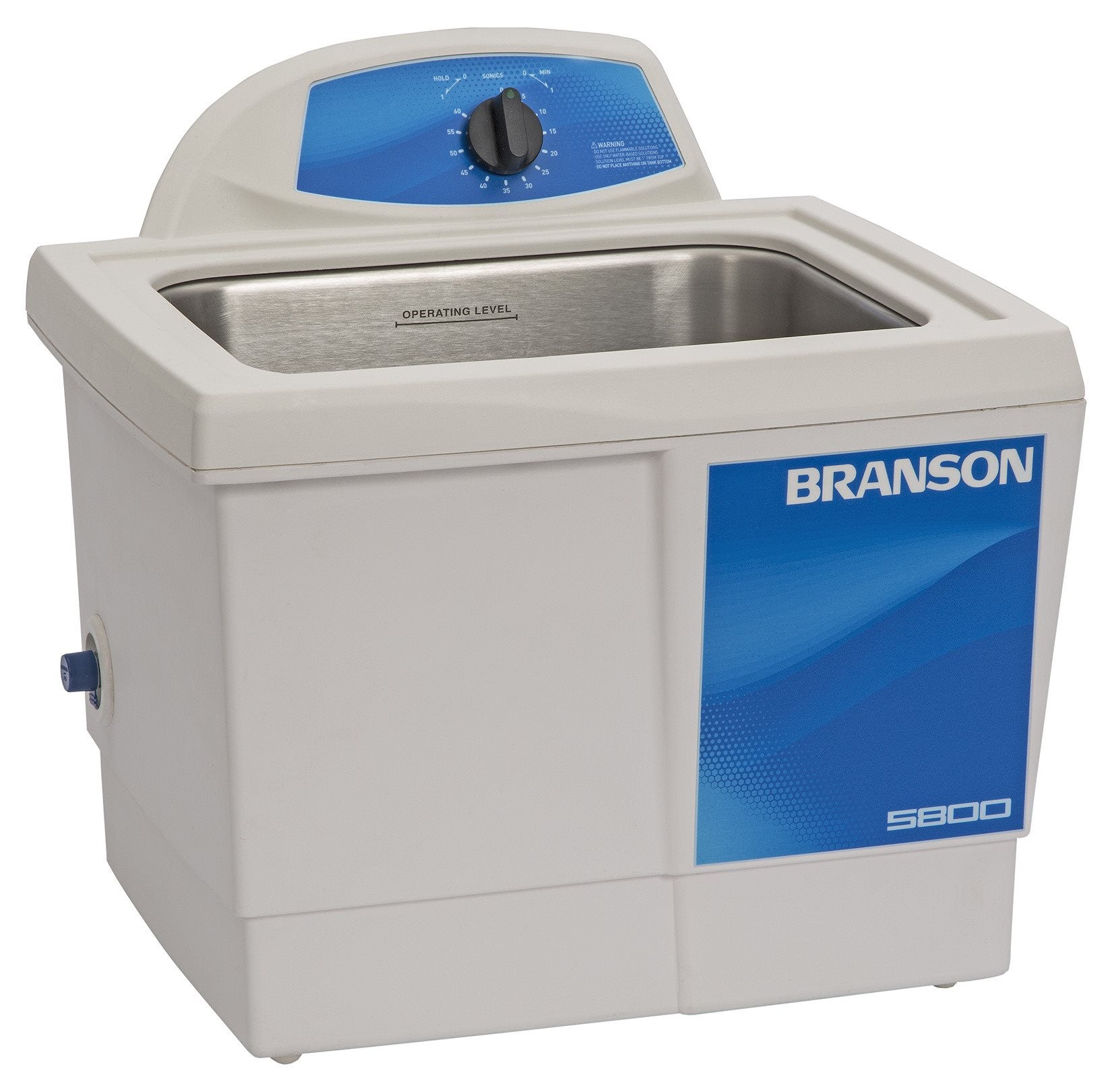

M5800: Perfect for those who want a rugged, easy to use ultrasonic cleaner, the M5800 features a mechanical timer capable of any cycle time between 1 and 60 minutes.

  • 40kHz Industrial Transducers
  • 60-minute Mechanical Timer (can be set to run continuously)
  • Tower Control Panel
  • Built-in Pour Drain (½ & ¾ gallon) or Side Mounted Drain

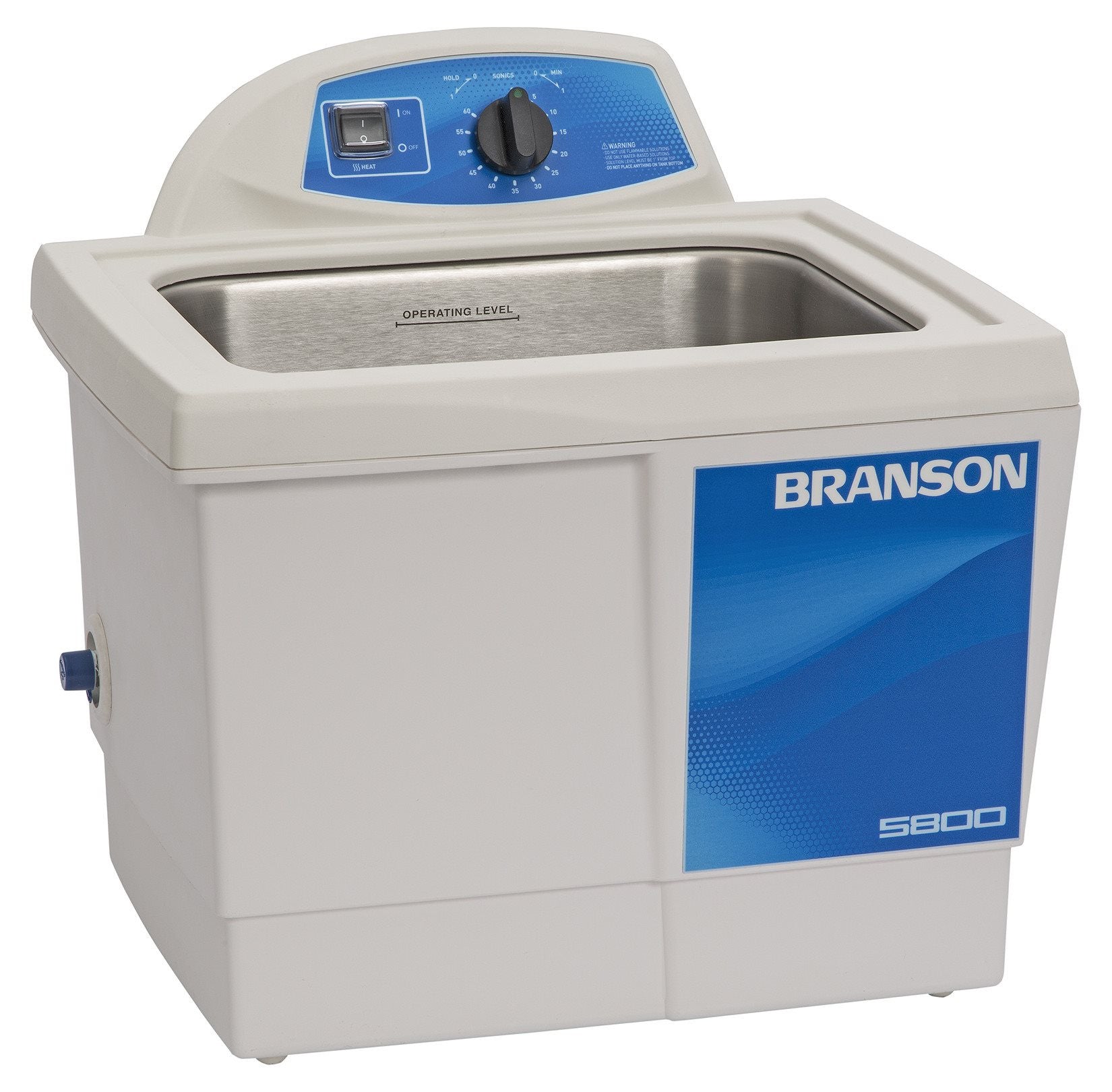

M5800H: Just like the M5800, the M5800H features an easy to use mechanical timer, but also includes a built in tank heater. This makes the M5800H a great choice for engine repair shops, bicycle repair, or any application that requires heat.

  • Heated Cleaning – up to 69°C/156.2°F
  • 60-minute Mechanical Timer (can be set to run continuously)
  • 40kHz Industrial Transducers
  • Tower Control Panel
  • Built-in Pour Drain (½ & ¾ gallon) or Side Mounted Drain

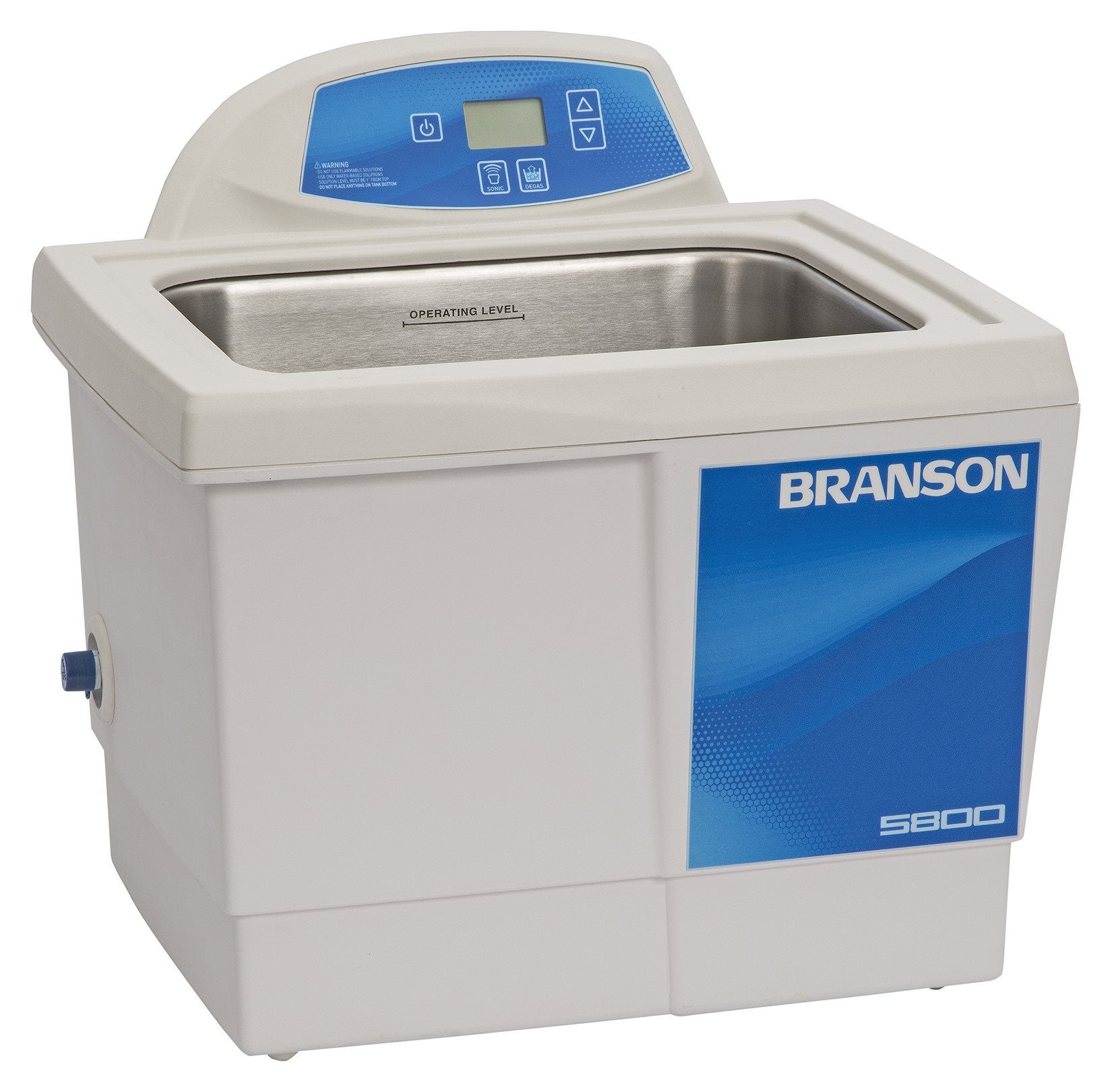

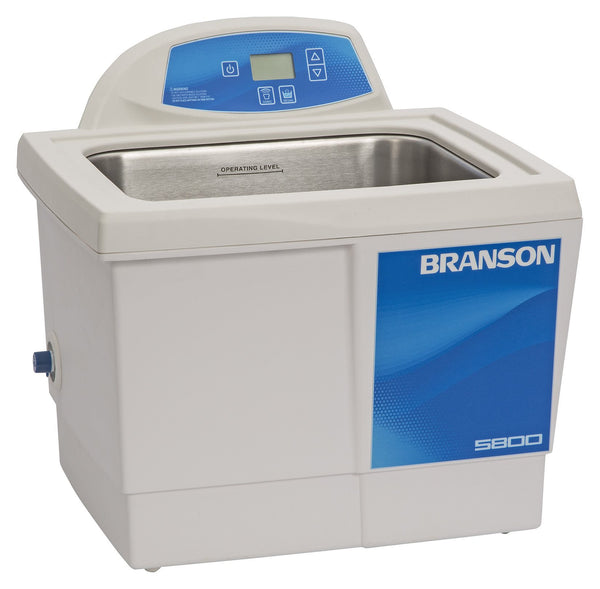

CPX5800: The CPX5800 has a fully programmable digital control system making it the perfect choice for any precision cleaning or scientific application that does not require heat.

  • Self-Adaptive Technology
  • Digital Tower Control Panel
  • Degassing & Conditioning
  • Sleep Mode

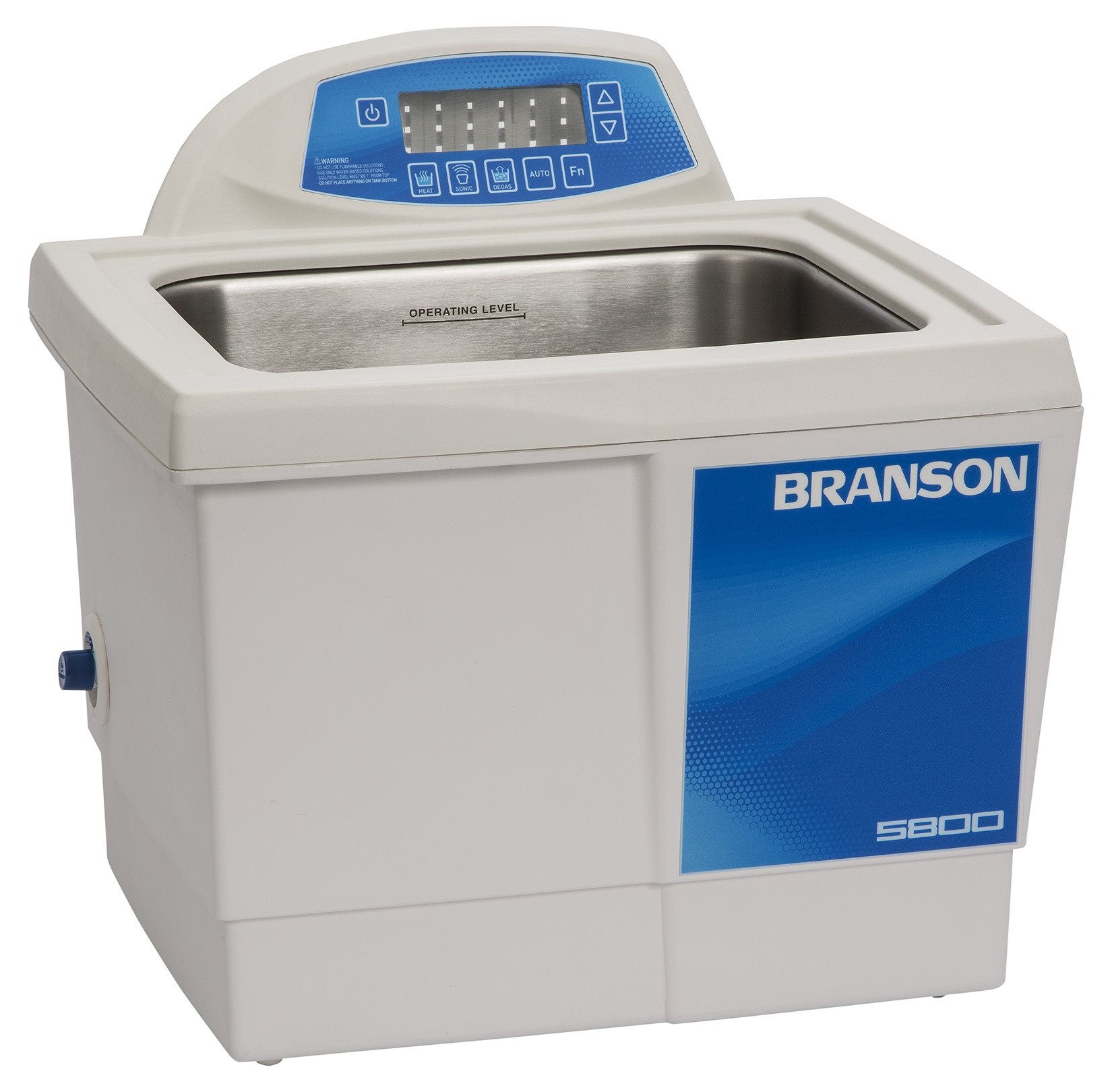

CPX5800H: The top of the line in Branson Ultrasonic's 5800 Series, the CPX5800H has all the same precision, digital controls as the CPX5800, but also includes a fully thermostatically controlled in-tank heater. There's no cleaning application that this model is incapable of handling!

  • Heated Cleaning – up to 69°C/156.2°F
  • Self-Adaptive Technology
  • Fully Programmable
  • High/low Power Control
  • Degas & Conditioning
  • Sleep Mode

 Model 5800 Specifications

Overall Size 16"l x 15.5"w x 14.5"d
Tank Size 11.5"l x 9.5"w x 6"d
Weight 14 lbs
Frequency 40 kHz


Demonstration of the features on the Digital CPX and CPXH models


Ask a Question
  • This cleaner must need a basket? or it is optional? To use this item longer, what recommend you?

    You always need a basket or a support rack to keep your product off the bottom of the tank. The bottom is the transmmitting membrane for the ultrasonics. Putting a part directly on the bottom wil not only mask the ultrasonic energy, it can damage your tank over time. Here;s a selection of accessories for your ultrasonic tank:
    ultrasonic accessories

  • How often Branson 5800 Cleaner need to be calibrated? and how to calibrated?

    Ultrasonic cleaners, including the Branson 5800, do not have a calibration requirement. The only thing you need to do is to keep the unit clean, follow the instructions in the manual and you'll be fine.
