Sonicor Industrial Benchtop Cleaners

$5,997.00


BCD-10
Product Description

Proudly made in the USA!

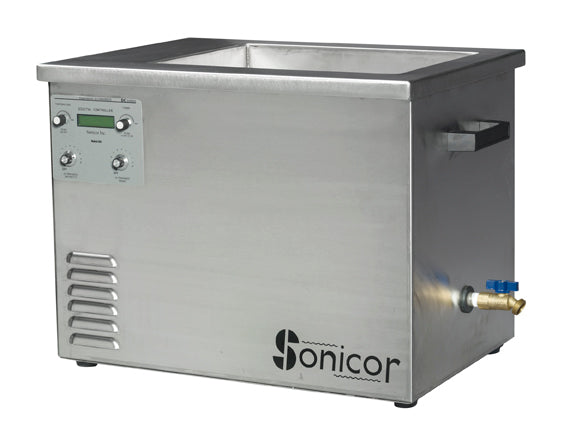

Sonicor Industrial Benchtop Cleaners are all-in-one, self contained units. Each Sonicor BC series unit features the exclusive BandScanner sweep frequency power supply, and a heavy duty stainless steel tank in one cabinet.

Three sizes are offered:

5 gallons; Tank I.D. 12" x 10" x 10"
7 gallons; Tank I.D. 14" x 10" x 12"
10 gallons; Tank I.D. 16" x 12" x 12"

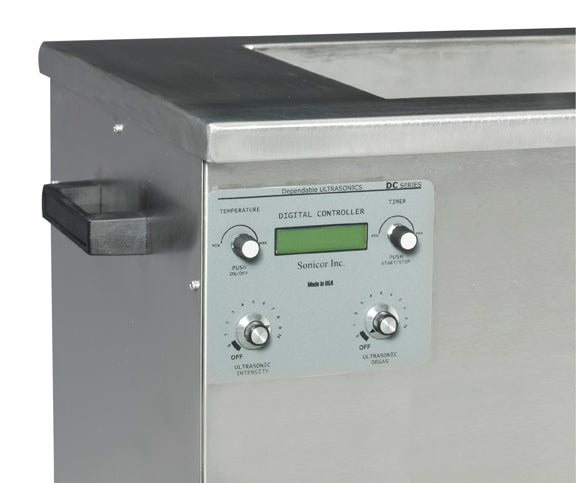

Digital Controls

  • User programmable microprocessor controlled
  • 60 degrees – 180 degrees F variable temp. control thermostat with display
  • 0-90 minute Ultrasonic cycle timer with digital display

Features common to all models:

  • All stainless tank fabrication
  • Drain valve
  • Ultrasonic intensity control
  • Variable pulse/degas control
  • Stainless steel lift-off tank cover
  • Cabinet handles
  • Ultrasonic cycle timer
  • Temperature control system

Shipping

Units shipped on a 48X40 skid/Pallet

BCD-5    65LBS    30X20X20
BCD-7    75LBS    30X20X20
BCD-10  82LBS    30X20X20

*Note: All Sonicor Benchtop Industrial Systems are made to order. Delivery is typically 4 weeks ARO.

Accessories:

Stainless steel parts basket

Tank ID 12″x 10″x 10″ 14″x 10″x 12″  16″x 12″x 12″
Capacity 5 gallons 7 gallons  10 gallons
Ultrasonic Power:
RMS Watts 400 600  900
Peak Watts 565 850  1275
Frequency 40KHz 40KHz  40KHz
Heat Watts 500 800  1200
Input Voltage 120 120  120
Input Current 8 amps 12 amps  18 amps
Tank Drain 1/2″ 1/2″  1/2″
Tank Material 14 ga 316L SS 14 ga 316L SS  14 ga 316L SS
Cabinet 304 Stainless 304 Stainless  304 Stainless
Cabinet O.D. 20″X 16″X 17″ 22″X 16″X 19″  24″X 18″X 19″
Lift-off Cover C-305 C-406 C-605



Download Manual  (Word docx format)
