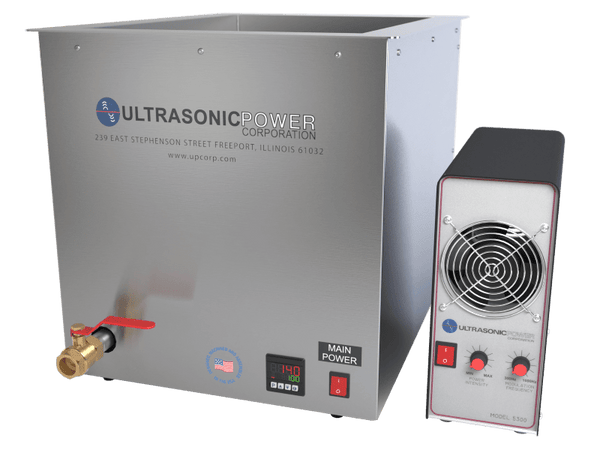

UPC Model BT 130H Digital Benchtop Ultrasonic Cleaner

Previous Product | Next Product

$7,085.00

50-26-344-D

Product Description

Heavy-Duty Precision Cleaning in a Compact 15-Gallon Benchtop System

The UPC Model BT 130H is a rugged, American-made ultrasonic cleaner built for high-performance industrial cleaning. Featuring Simultaneous Multi-Frequency® technology, digital controls, and all-stainless construction, this system delivers unmatched consistency and reliability—even under continuous use.

✅ Key Features

15-gallon tank capacity — perfect for midsize parts or batch cleaning
Simultaneous Multi-Frequency® cleaning (40–90 kHz)
Digital temperature controller with high-efficiency sweep circuitry (300–1000 Hz)
Patented constant power monitoring keeps output consistent as load or solution changes
1000W RMS ultrasonic power (2000W peak) for deep, even cleaning
1000W heating system to maintain optimal cleaning temperature
Double-wall stainless steel tank — 14-gauge, 316L stainless steel, double TIG welded
Sloped bottom with heavy-duty drain valve for easy solution changes
Includes stainless steel lid, 6' coaxial cable, and power cord
Adjustable power intensity & sweep rate for process control
Made in the USA — built for 24/7 operation

Quick specs:

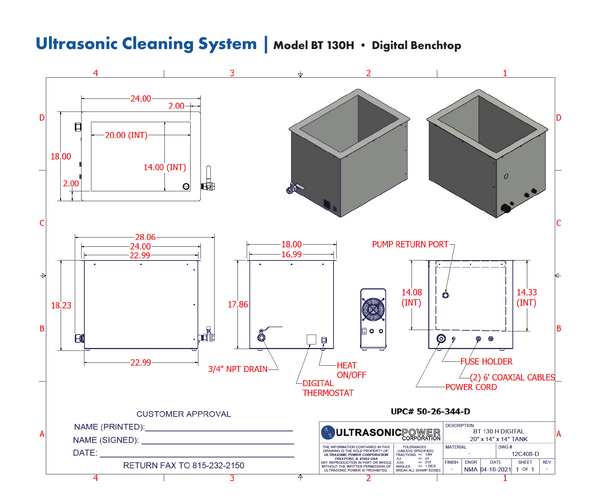

Internal tank dimensions: 20" L x 14" W x 14" H
Overall system size: 24" L x 18" W x 18" H
Ultrasonic frequency: 40 kHz standard (optional: 25, 68, or 170 kHz)
Ultrasonic power: 1000 watts RMS / 2000 watts peak
Heating power: 1000 watts
Power requirement (cleaner): 120 VAC, 50/60 Hz, single phase, 8.3A
Power requirement (generator): 120 VAC, 50/60 Hz, single phase, 10.7A

Full Specs:

Overall Length	18”
Overall Width	24”
Overall Height	18”
Tank Length	14”
Tank Width	20”
Tank Depth	14”
Working Depth	12”
Tank Volume	17 Gallons
Working Liquid Volume	14.5 Gallons
Weight (Empty)*	100 lbs
Electrical Supply Requirements*	110V/120V-1P, 50/60 Hz
System Supply Requirements*	8.3 Amps
Generator Supply Requirements*	10.7 Amps
Ultrasonic Power (Average)*	1000 Watts
Generator Operating Frequency*	40 kHz
Heater Power*	1000 Watts
Estimated Heat Up Time***	2.7 hours
Maximum dB level	85 dB
Maximum Operating Temperature	180°F

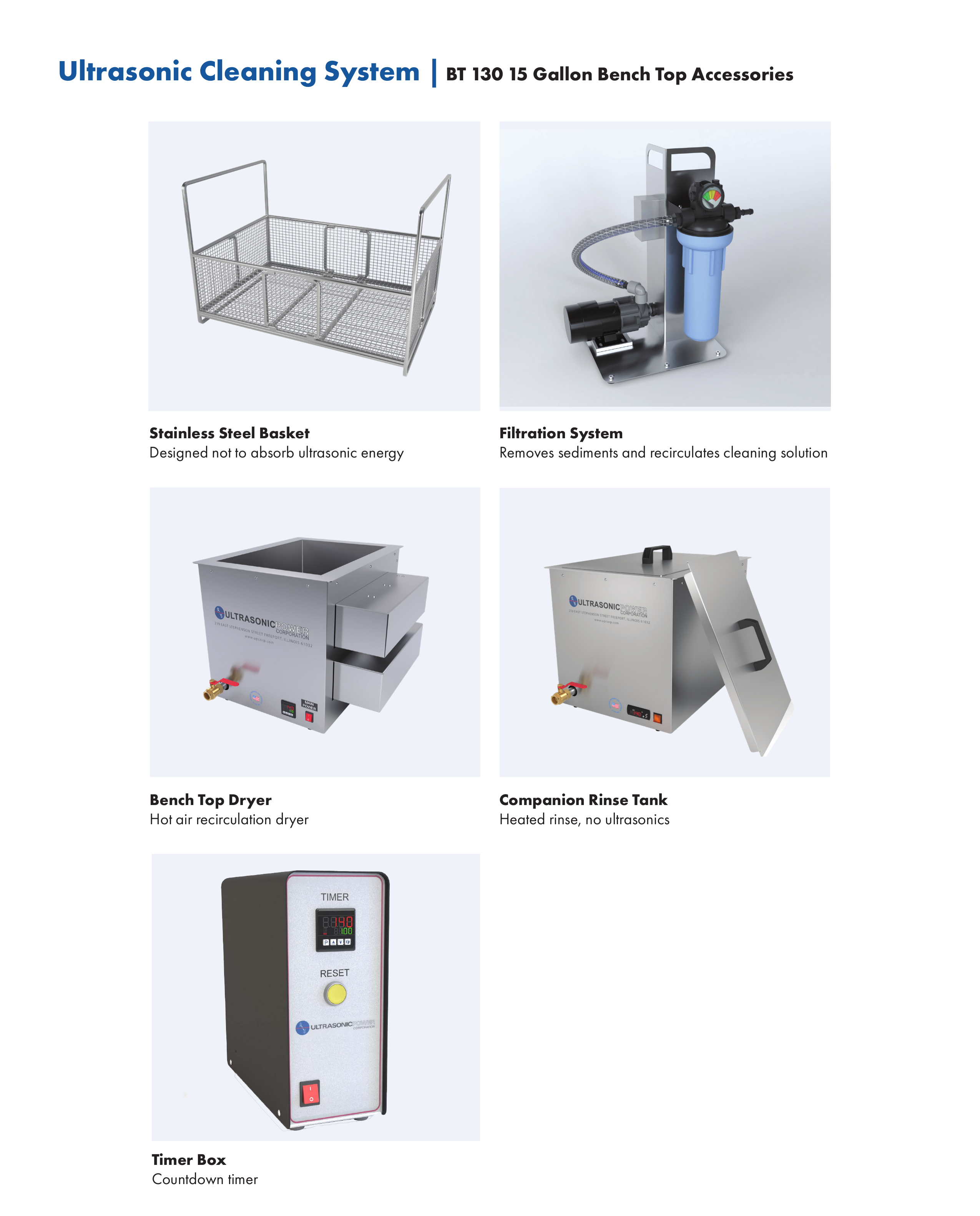

Filtration system (recirculates & removes debris)
Stainless steel basket (optimized for ultrasonic transmission)
Heated rinse tank (no ultrasonics, just warm rinse)
Bench top hot air dryer
Countdown timer box

The following is Ultrasonic Power Warranty Information on the Industry Leading "10-5-2" New Product Warranty

THE WARRANTY (the “Warranty”)
Ultrasonic Power Corporation (“UPC”), as a Manufacturer, warrants all products manufactured by UPC (“Products”) meet UPC’s production and quality assurance specifications before being released for distribution. Accordingly, UPC warrants that from the date of shipment from UPC’s facility:

VIBRA-BAR® Transducer to the radiating surface shall be free from defects in material and workmanship and is guaranteed not to crack, depolarize or detach from the radiating surface for ten (10) years;
All ultrasonic generators shall be free from defects in material and workmanship for five (5) years;
All transducer components shall be free from defects in material and workmanship for two (2) years; and
All other components, electrical and mechanical, used in manufacturing by UPC not otherwise identified above, such as industrial-grade stainless steel tanks, shall be free from defects in material and workmanship for a period of two (2) years.
