Branson SFX550 Sonifier

Our most powerful Sonifier®, the SFX550 easily handles high-volume applications with up to 550 watts of output power at 20 kHz. The SFX550 can process larger, viscous samples, but also provides precise control over energy output and other parameters to accommodate experiments of all sizes.

All SFX Series Sonifiers provide exclusive Branson features including advanced energy mode and true temperature control.

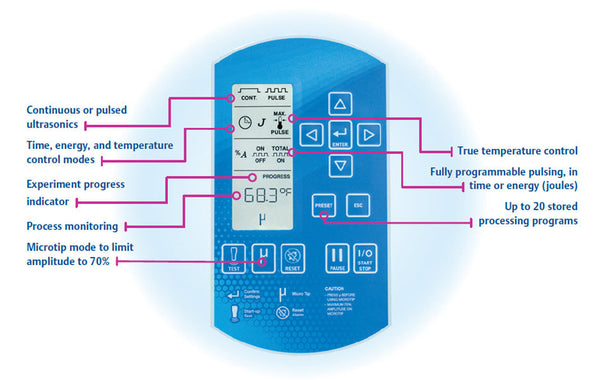

• True temperature control allows the user to specify a temperature range for the sample
• The Sonifier automatically adjusts the ultrasonic pulse length to prevent the sample from overheating (requires optional temperature probe).
• Advanced Control Modes: Energy mode and energy pulsing are now available in addition to the traditional timed experiment In-Process
• Feedback Monitoring: Check on the progress of your experiment and view key variables such as power level, energy usage, sample temperature and more
• Continuous or pulsed ultrasonics Max temperature limit
• Experiment progress indicator Microtip mode, which limits amplitude to 70% 550 watts output power Processing up to 1000 mL

Part# 101-063-969R
SFX550 Sonifier with 1/2" Horn - 550 watts, 20 kHz, 120V. The 550 model easily handles larger samples with up to 550 watts output power.

Features advanced control modes including time and energy mode with energy pulsing. Branson offers industry-exclusive adaptive temperature control when paired with optional temperature probe. Includes converter, cable, and 1/2" horn.

Part# 101-063-971R
SFX550 Sonifier with 1/2” Horn - Same as above but European model (240V, CE)

Part# 101-063-968R
SFX550 Sonifier with 3/4” Horn - 550 watts, 20 kHz, 120V. The 550 model easily handles larger samples with up to 550 watts output power.

Features advanced control modes including time and energy mode with energy pulsing. Branson offers industry-exclusive adaptive temperature control when paired with optional temperature probe. Includes converter, cable, and 3/4” horn.

Part# 101-063-970R
SFX550 Sonifier with 3/4” Horn - Same as above but European model (240V, CE)
