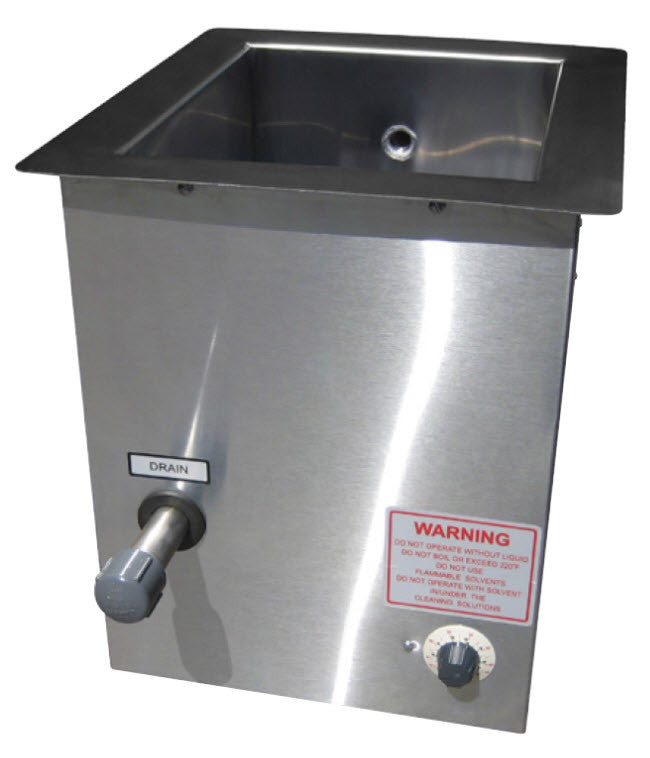

Branson Ultrasonic Tank, Series 8000, Five Gallon

Product Description

Branson CH1012 tanks use type 316L bright-annealed stainless steel construction throughout. permitting the use of alkaline, mildly acidic, or neutral aqueous solutions.

You can specify either 25 kHz of 40kHz transducers.

Branson tanks are available with or without integral heaters. Heated models are available to maintain solution temperatures up to 170oF (76C).

All models are available with a stainless steel parts basket and/or tank cover.


STANDARD FEATURES
• Bottom-mounted positive drain connection.
• Fully shielded internal components.


OPTIONS
• Stainless steel basket for parts handling.
• Stainless steel tank cover.
• Thermostatically-controlled heat



  • Working Dimensions: 10"W x 12"L x 10"D
  • Overall Dimensions*: 14"W x 16"L x 16H"
  • Transducers 12
  • Heater Power: 1000 Watts
  • PowerRequirements: 230V/1p/8.7A or 120v
  •

    NUMBERING SYSTEM
    Each Branson transducerized tank has a model number which contains important information to guide the selection of a properly rated comparison power supply. When making a selection, note the frequency.

    For example: CH1012-40-12

    This model number, stamped on the tank nameplate, indicates:

    • whether the tank has a heater (H = heated)  CH1012-40-12
    • the length of the tank in inches, left to right (10”)  CH1012-40-12
    • the width of the tank in inches, front to back (12”)  CH1012-40-12
    • the operating frequency (40kHz)  CH1012-40-12
    • and the number of attached piezoelectric transducer elements (12)  CH1012-40-12


    POWER SUPPLY SELECTION
    To select the correct power supply for your transducerized tank, add the total number of transducer elements involved by using the information from the model number as explained. Then, select a power supply whose last two numbers exactly match the number of transducer elements.

    Select your ultrasonic power supply



    $2,875.00
    CH1012-25-12
